2PCS 200W 100W Flexible Solar Panel 12V 24V Solar Charge Battery Solar Panel Kit 30A Controller Camping RV Home Solar Power Bank
200W solar panel parameters
-
Model: POW-LTW 200W
-
Material: Monocrystalline silicon
-
Weight:3.2KG
-
Size: 1360*780*2mm
-
Maximum power (Pmax): 200W
-
Maximum power supply voltage (Vmp): 22.68V
-
Maximum power current (Imp): 8.82A
-
Open circuit voltage (Voc): 27.22V
-
Short circuit current (Isc): 9.35A
-
Maximum system voltage: DC1000V
-
Output: USB 5V1ADC
-
Waterproof grade: IP65
-
Standard test conditions
-
AM=1.5
-
Irradiance=1000W/㎡
-
Temperature=25℃
-
Warranty period: 1 year

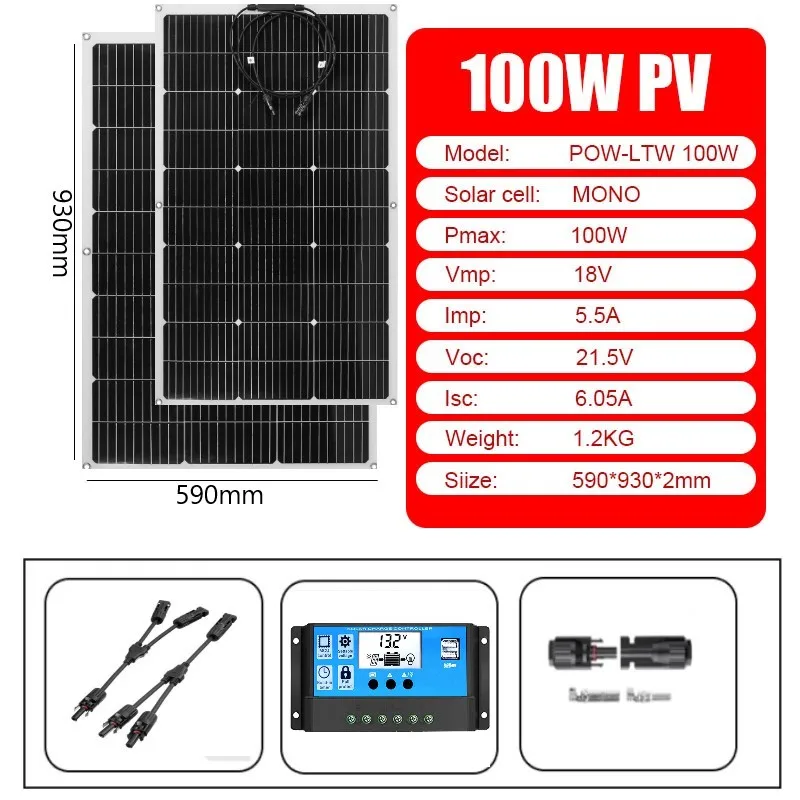

100W solar panel parameters
-
Model: POW-LTW 100W
-
Material: Monocrystalline silicon
-
Weight:1.2KG
-
Size: 930*590*3mm
-
Maximum power (Pmax): 100W
-
Maximum power supply voltage (Vmp): 19.44V
-
Maximum power current (Imp): 5.15A
-
Open circuit voltage (Voc): 23.33V
-
Short circuit current (Isc): 5.45A
-
Maximum system voltage: DC1000V
-
Output: USB 5V1ADC
-
Waterproof grade: IP65
-
Standard test conditions
-
AM=1.5
-
Irradiance=1000W/㎡
-
Temperature=25℃
-
Warranty period: 1 year
|
MODEL |
POW-LTW 200W |
POW-LTW 100W |
|
Crystalline Silicon |
Monocrystalline Silicon |
Monocrystalline Silicon |
|
Maximum Power (Pm) |
200Wp |
100W |
|
Maximum Operating Voltage (Vm) |
22.68V |
19.44V |
|
Maximum Operating Current (Im) |
8.82A |
5.14A |
|
Open-Circuit Voltage (Voc) |
27.22V |
23.33V |
|
Short-Circuit Current (Isc) |
9.35A |
5.45A |
|
Dimensions |
780*1360*3mm |
590*930*3mm |
|
Weight |
3.2kg |
1.2kg |
|
Maximum System Voltage |
600V |
600V |
|
Junction Box Type |
ABS |
ABS |
|
Cell Efficiency |
21% |
21% |
|
Standard Test Conditions |
AM1.5 100mW/C ㎡ 25’C |
AM1.5 100mW/C ㎡ 25’C |
|
Warranty |
1-year |
2-year |
|
Packaging |
Carton |
Carton |
|
Waterproof grade |
IP65 |
IP65 |
|
application |
Home,RV,Boat,Camping |
Home,RV,Boat,Camping |
200
100W
